Multi-Head Latent Attention: DeepSeek V2/V3 Engineering View

中文版本: 阅读中文版

This article focuses on engineering perspective. The mathematical derivation of MLA (from RoPE to latent projection, partial RoPE compatibility proof, weight absorption algebra) is in /posts/mathematics/position-encoding/mla-from-rope/. This article does not repeat the math — it discusses only the engineering numbers and design trade-offs that matter for DeepSeek V2/V3 deployment.

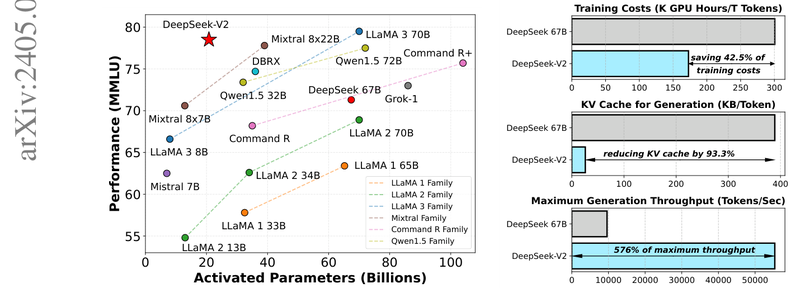

Figure from DeepSeek-V2: A Strong, Economical, and Efficient MoE Language Model

1. Why DeepSeek Chose MLA: Engineering Motivation

DeepSeek V2 / V3 [1] adopt MLA as the replacement for standard MHA — the root motivation is deployment economics. In LLM serving, the KV cache memory footprint directly determines how many concurrent requests fit on one card. For DeepSeek V2’s size ($n_h = 128$, $d_h = 128$, $l = 60$), standard MHA caches $2 n_h d_h = 32{,}768$ elements per token per layer; across 60 layers, ~2M elements/token, ~4 MB/token in bf16. Under 32 K context, a single sequence consumes ~128 GB — one H100 80 GB cannot even fit it.

MLA compresses the per-token per-layer cache to $d_c + d_h^R$ elements. DeepSeek V2 picks $d_c = 4 d_h = 512$ and $d_h^R = d_h / 2 = 64$, totaling 576 elements/token/layer — relative MHA compression of about 57× (note: the 28.4× figure often quoted in early literature corresponds to the $n_h = 64$ configuration). Under 32 K context the single-sequence KV cache drops to ~2.2 GB, which is the economic threshold for viable long-context serving.

GQA and MQA can also compress KV cache, but they carry structural costs:

• MQA shares one K/V pair across all heads ($n_g = 1$), compressing MHA by a factor of $n_h$. The cost is significant expressiveness loss — all query heads see the same K/V, sacrificing per-head differentiated attention patterns.
• GQA is a compromise with $n_g = n_h / r$, where every $r$ query heads share one K/V group. LLaMA-2 70B uses $r = 8$, engineering-validated as low-loss, but the compression ratio is only 8× — an order of magnitude below MLA’s ~50×.

MLA’s engineering advantage: KV cache size is decoupled from $n_h$. $d_c$ is an independent design variable, allowed to be much smaller than $n_h d_h$ without forcing multi-head K/V sharing. DeepSeek V2 retains 128 heads while pushing cache down to near-MQA levels — something GQA structurally cannot achieve.

2. Deployment Numbers: DeepSeek V2 / V3 Measurements

The table below summarizes deployment-side numbers from DeepSeek reports (V2 from [1], V3 from [2]).

The ~14× throughput improvement does not scale linearly with the ~57× cache compression because throughput also depends on attention compute, MoE routing, and network bandwidth — cache compression mainly unlocks the memory-bandwidth bottleneck under long context, with relatively smaller gain for short context.

DeepSeek reports do not provide a direct MLA-vs-GQA comparison under identical conditions (V2’s baseline is 67B MHA). Estimating: if V2 used $r = 8$ GQA, per-token-per-layer cache ~4 KB, still ~7× of MLA; under 32K context KV footprint ~15 GB — fits, but single-card concurrency is significantly lower than MLA.

3. Latent Dimension Design Choice

DeepSeek reports use $d_c = 4 d_h$, $d_c' = \frac{3}{2} d_h$ (query compression), $d_h^R = d_h / 2$. These numbers are not ablated in the paper — they look like heuristic engineering picks, chosen to match a total KV cache budget similar to GQA.

This is an open problem with MLA design: the optimal $d_c$ depends on model size, context length, training data distribution, and several other factors, but no systematic ablation exists in the public literature. One direction worth tracking is the trade-off between $d_c$ and head count $n_h$ — MLA allows $n_h$ to grow arbitrarily (no cache penalty), but as $n_h$ grows does the per-head projection quality in the latent subspace degrade? DeepSeek V2 uses 128 heads (~2× of same-size LLaMA) — is it near the knee of this trade-off? No public data answers this.

4. Engineering Critique: Heuristic Choices and Real-World Long-Context Gains

MLA’s success on DeepSeek V2/V3 should not overshadow several under-justified design choices. First, $d_c = 4 d_h$ lacks ablation support — the paper does not sweep $d_c \in \{2, 4, 8, 16\} \times d_h$, nor justify why query compression uses $d_c' = \frac{3}{2} d_h$ while KV compression uses $4 d_h$. These number combinations work in practice but are “tuned in” rather than “derived”. A truly convincing MLA paper should present the complete Pareto frontier of latent dim vs model quality vs inference speed vs training stability — that does not exist today.

Second, does the KV cache compression deliver theoretically estimated gains at long context (>32K)? Theoretically 57× compression should reduce attention’s memory-bandwidth consumption by 57×, but at inference time attention must still perform $W_{UK}, W_{UV}$ up-projections (or their weight-absorbed equivalents), and that cost grows linearly with context length. Under short context the cache is not the bottleneck; under long context the up-projection cost grows to dominate — MLA’s real speedup is context-length-dependent, but DeepSeek reports only “max throughput” aggregate numbers. An independent benchmark (e.g. the vLLM implementation in [6]) would be more convincing.

Third, does MLA + partial RoPE introduce a representation bias? Decoupled RoPE only applies RoPE to $d_h^R = d_h/2 = 64$ dimensions, leaving the other $d_h = 128$ dimensions positionless. Attention’s positional sensitivity thus comes from only 1/3 of the dimensions. Under long context the ratio of positional to content signal is already scarce; partial RoPE further dilutes it — does this hurt long-context fine-grained reference? Does V3’s 128K context needle-in-a-haystack performance match expectation? DeepSeek reports aggregate perplexity and standard benchmarks, without breakdowns for position-sensitive tasks.

Related Concepts

• MLA Mathematical Derivation (canonical version) — full derivation from RoPE to latent projection, partial RoPE compatibility proof, weight absorption algebra: see /posts/mathematics/position-encoding/mla-from-rope/
• Low-Rank Approximation Theory — MLA’s down-projection + up-projection is the engineering realization of SVD low-rank truncation: see /posts/mathematics/matrix/svd-low-rank/
• KV Cache Inference Acceleration (cross-domain) — X-Cache in world model inference is the same idea in the vision domain: see /posts/world-models/xpeng-x-cache-world-model-inference-acceleration/

References

[1] DeepSeek-AI. DeepSeek-V2: A Strong, Economical, and Efficient Mixture-of-Experts Language Model. arXiv:2405.04434, 2024.

[2] DeepSeek-AI. DeepSeek-V3 Technical Report. arXiv:2412.19437, 2024.

[3] Shazeer, N. Fast Transformer Decoding: One Write-Head is All You Need (MQA). arXiv:1911.02150, 2019.

[4] Ainslie, J., Lemercier, P., et al. GQA: Training Generalized Multi-Query Transformer Models from Multi-Head Checkpoints. Proceedings of EMNLP, 2023.

[5] Su, J., Ahmed, M., Lu, Y., Pan, S., Bo, W., and Liu, Y. RoFormer: Enhanced Transformer with Rotary Position Embedding. Neurocomputing, 2024.

[6] Kwon, W., et al. Efficient Memory Management for Large Language Model Serving with PagedAttention (vLLM). SOSP 2023.
